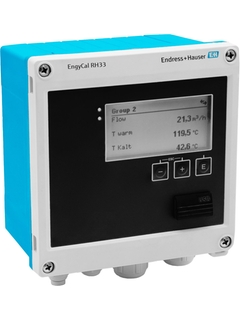

EngyCal RH33
BTU meter

Custody transfer BTU meter for recording heat quantities of water

RH33

Compare

Specs at a glance

Input

1x Puls/Analog
2x RTD/Analog
Loop power supply 24V DC (+/-16%)
Output

1x 4...20mA
2x digital (Open Collector)
Display

160 x 80 Dot-Matrix LCD with white backlit
colour change in case of alarm event
active display area 70 x 34 mm
Calculations

heat quantity and heat quantity difference

See all specifications

Field of application

The BTU meter RH33 is used in applications with liquid energy carriers.
It calculates the thermal energy of water acc. to EN1434, glycol/water mixtures or other fluids such as thermal oils. Temperature sensor matching using calibrated temperature sensors is done in the device.
Potential for cost savings can be shown by using the software available as an accessory.
The device has a custody transfer approval and allows bi-directional measurement, e.g. charging/discharging of a heat accumulator.

Recording and billing the quantities of heat and cold in:

Heating circuits
Cooling circuits
Combined heating and cooling circuits

Typical application areas in industry, long-distance heat networks and building automation.

Benefits

Transparent energy consumption helps you save on energy costs
Calibrated, electronically paired temperature sensors ensure the highest accuracy and enable replacement of individual temperature sensors even for certified devices in the field (without reapproval!)
Tariff counter for requirements-based billing
Detailed data logging of current and counter values and of error messages, off-limit conditions and changes to operating parameters
Standard models are suitable for connecting and supplying all common volume flow transmitters and temperature measuring points
Remote readout via Ethernet and fieldbuses
Verified and certified reliability and accuracy
