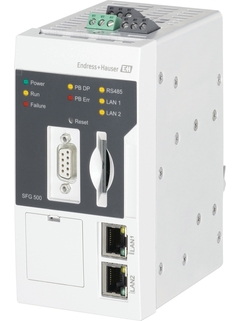

Fieldgate SFG500 - Ethernet gateway with integrated Web server that provides an independent access route to a PROFIBUS network. Plant Access Point for PROFIBUS devices.
- F
- L
- E
- X
One hardware, multiple options: Fieldgate SFG500 is designed to serve a variety of applications. The operating mode of a Fieldgate SFG500 is determined by an optional Fieldgate Module SFM500
- F
- L
- E
- X

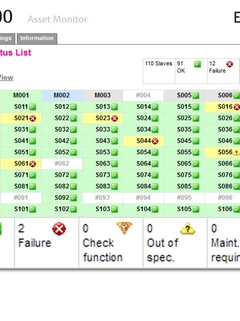

Fieldgate SFG500 “Asset Monitor” Advanced mode: Asset Status List with indication of NE 107 status
- F
- L
- E
- X

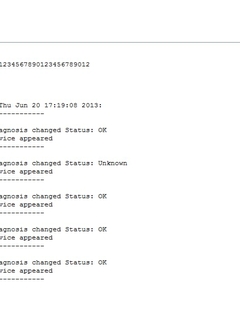

Fieldgate SFG500 “Asset Monitor” Advanced mode: Event e-mail notification listing all events of a certain time period
- F
- L
- E
- X

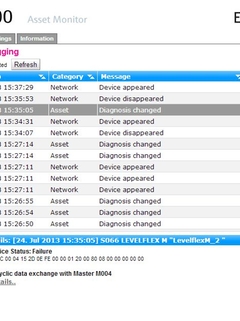

Fieldgate SFG500 “Asset Monitor” Advanced mode: Event Logging for device diagnostic messages and other changes versus a defined baseline
- F
- L
- E
- X

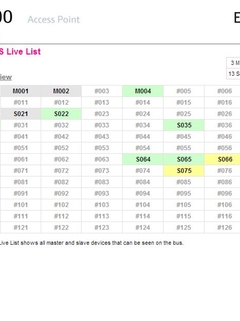

Fieldgate SFG500 “Access Point” Basic mode: PROFIBUS Live List with indication of communication status
- F
- L
- E
- X

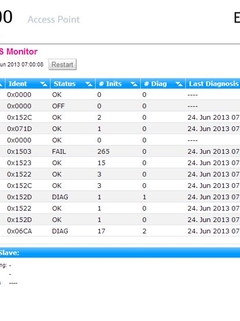

Fieldgate SFG500 “Access Point” Basic mode: PROFIBUS Monitor counts reconfigurations and diagnostic events
- F
- L
- E
- X

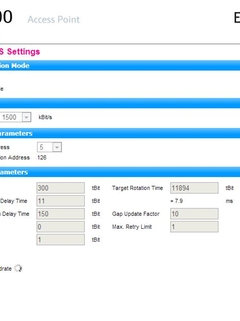

Fieldgate SFG500 “Access Point” Basic mode: PROFIBUS Settings may be autodetected or user-defined
- F
- L
- E
- X

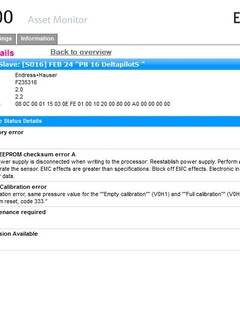

Fieldgate SFG500 “Asset Monitor” Advanced mode: Slave Details showing device status with cause and remedy information
- F
- L
- E
- X

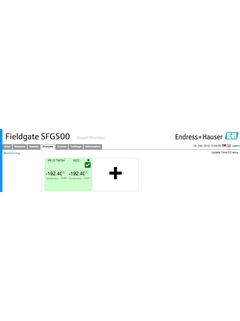

Fieldgate SFG500 „Process Monitor“ Advanced mode: Monitoring cyclic and acyclic process values
- F
- L
- E
- X

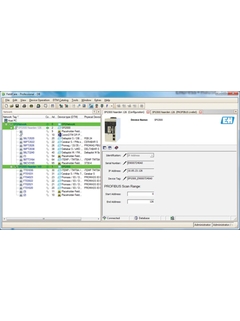

Fieldgate SFG500: Integration with FieldCare - software tool for field device configuration, for basic and advanced mode
- F
- L
- E
- X

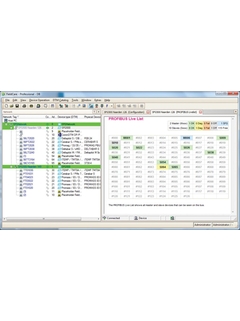

Fieldgate SFG500: Integration with FieldCare - software tool for field device configuration, for basic and advanced mode
- F
- L
- E
- X
Get the most information out of your field device by using FieldCare, scalable software tool for device configuration and integrated Plant Asset Management solutions.
Field of application

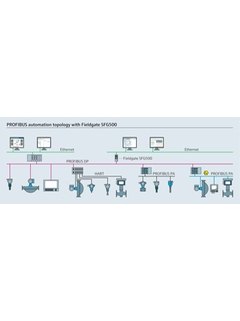

Fieldgate SFG500 is a system component that provides an independent access route to a PROFIBUS network. It may be used in a variety of applications that are supported by specific operating modes.

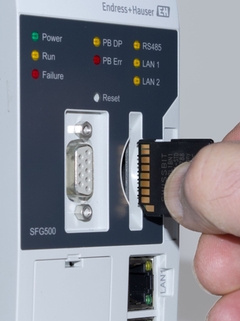

Fieldgate SFG500 may be used in a variety of applications that are supported by specific operating modes. The operating modes are determined by the use of an optional memory card (Fieldgate Module SFM500).
Without a memory card, Fieldgate SFG500 operates as a plant access point. In this case, it acts as an Ethernet gateway with adaptive PROFIBUS Master Class 2 capabilities to support FDT-based plant asset management host applications, e.g. FieldCare.
With the insertion of the memory card, device diagnostic information such as the NAMUR NE 107 status with failure reason and remedies as well as the process values of PROFIBUS and HART devices are displayed in the integrated web browser.
Benefits
PROFIBUS listener and Master Class 2: automatically integrates itself into a PROFIBUS network and finds all connected devices
HART support via PROFIBUS: HART device support and device diagnostics
PROFIBUS observer: monitors network traffic and device diagnostics
Web Server: provides a clear presentation of network and diagnosis information via Web Browser or FDT/DTM frame application
SFGNetwork DTM: finds all SFG500 Fieldgates present in an Ethernet domain and displays their PROFIBUS connections
Fieldgate Module SFM500: activates functions for process value and diagnostic display
