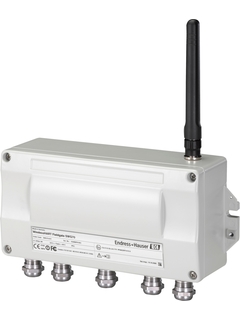

WirelessHART Fieldgate SWG70 with Ethernet and RS-485 interfaces

WirelessHART Fieldgate SWG70

Intelligent WirelessHART gateway with Ethernet and RS-485 interfaces

SWG70
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
WirelessHART Fieldgate SWG70 with Ethernet and RS-485 interfaces
  • F
  • L
  • E
  • X
© Endress+Hauser

Specs at a glance

  • Output

    Ethernet (10 BASE-T/10 BASE TX)
    - Configurable for HART IP and MODBUS TCP communication
    RS-485 serial interface
    - Configurable for HART Version 7.0 or MODBUS RTU communication
    EtherNet/IP interface

  • Display

    Integral via 5 LEDs

Field of application

Endress+Hauser's WirelessHART Fieldgate SWG70 has been designed to act as interface between a system using Ethernet or RS-485 physical layer and WirelessHART network. The gateway is designed for mounting in explosion hazardous areas Zone 2. An integral or remote antenna can be mounted according to the needs of the application.

Process optimization, Tank and silo monitoring/Inventory control, Condition monitoring of equipment. The WirelessHART gateway converts and stores wireless device data in a format that is compatible with other systems. It has Ethernet and serial interfaces for connection to host applications such as Plant Asset Management and SCADA tools.

Benefits

  • Easy commissioning and diagnosis of a self-organizing WirelessHART network

  • Seamless integration of field device information into superior system applications with standardized protocols, such as MODBUS, EtherNet/IP, HART-IP or OPC

  • Wireless configuration and administration of intelligent field devices in the plant by using FieldCare

  • Flexible Fieldgate operation in ex-hazardous areas in the plant

Videos

  • The Simply Explained video, “No-hassle wireless – with WirelessHART” demonstrates how the efficiency of a flue gas denitrification unit can be increased while at the same time saving costs.
