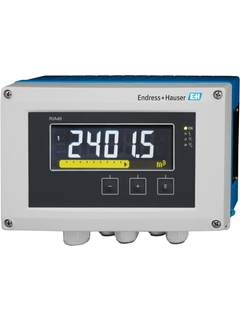

Product picture field meter RIA46 with control unit

RIA46 process indicator with control unit

4-wire process indicator with control unit as a field device with up to two universal sensor inputs and optional SIL approval

RIA46
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
Field meter RIA46 with control unit
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Input

    2 x universal (U, I, R, RTD, TC)

  • Output

    2 x analogue output (I, U) 1 x loop power supply

  • Display

    Multicolor backlight LCD
    White/black/yellow
    Bargraph
    Unit
    TAG
    Alarm warning in plain text

  • Power Supply

    20...250V AC/DC

Field of application

Analog measured values are indicated, evaluated and calculated by the field indicator. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.

The RIA46 field meter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are available as a signal source for display, outputs, relays and the interface.

  • Process recording and supervision

  • Process control

  • Signal adjustment and signal conversion

Benefits

  • 5-digit 7-segment LC display, backlit

  • 1 or 2 universal inputs

  • 2 relays (optional)

  • Min./max. value saved

  • 1 or 2 calculated values and linearization table

  • Digital status output (Open Collector)

  • SIL 2 approval (optional)

Get this product as part of a bundle

  • Bundle of CM82 transmitter and RIA46 field meter Bundle of CM82 transmitter and RIA46 field meter
    • Bundle

    1-/2-channel transmitter bundle with 4-wire field meter

    RIA46 field meter and up to two Liquiline Compact CM82 transmitters with optional Bluetooth connection for field installation in all industries

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    Price after configuration in cart

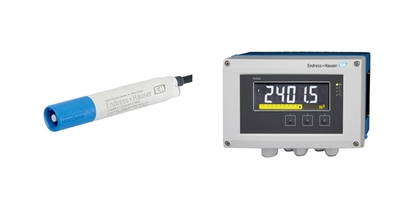

  • Bundle of CM72 transmitter and RIA46 field meter Bundle of CM72 transmitter and RIA46 field meter
    • Bundle

    1-/2-channel transmitter bundle with 4-wire field meter

    RIA46 field meter and up to two Liquiline Compact CM72 transmitters for field installation in all industries

    Loading price
    Prices temporarily unavailable
    Price on request
    activating price
    price: provide information
    Price after configuration in cart
