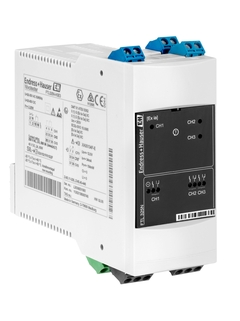

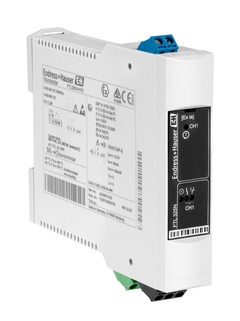

Nivotester FTL325N - Vibronic point level detection

Vibronic
Point level detection
Nivotester FTL325N

Switching unit with NAMUR input for rail mounting or single installation

FTL325N
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-
Nivotester FTL325N
  • F
  • L
  • E
  • X
©Endress+Hauser
Nivotester FTL325N
  • F
  • L
  • E
  • X
©Endress+Hauser

Field of application

Nivotester FTL325N is a switching unit for point level detection in liquid tanks, also in hazardous explosion areas. Also suitable for overfill prevention in tanks with combustible or non-combustible liquids harmful to water. Two-point control and point level detection. The perfect fit for applications in safety related systems with requirements for functional safety up to SIL2 in accordance to IEC 61508 /IEC 61511 using Liquiphant with electronic insert FEL56 or FEL58.

Switching unit with NAMUR input for rail mounting or single installation.

  • Ambient temperature: -20 to +50°C (-4 to +122°F)

  • International explosion protection certificates, overfill prevention WHG, marine approvals

Benefits

  • Nivotester FTL325N for connecting one, two or three measuring cells (1-, 2- or 3-channel devices)

  • Intrinsically safe signal circuits Ex ia for use of measuring sensor in explosion hazardous areas

  • Functional safety up to SIL2 through line monitoring

  • DIN Rail housing for simple series installation on standard rails in switch cabinet

  • Simple wiring using pluggable terminal blocks

  • NAMUR interface to EN 50227 (DIN 19234; NAMUR) or IEC 60947-5-6 to connect NAMUR sensors or electronic inserts
