SS1000

TDLAS

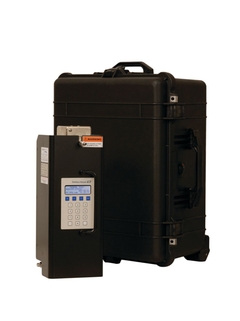

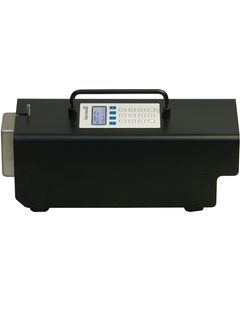

Portable, light weight, easy to handle, and battery-powered moisture (H2O) analyzer, used to verify measurements and to spot-check when other methods provide questionable results. The sensor measures gas using tunable diode laser absorption spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream.

1

H2O (Moisture):
0 to 100 ppmv (minimum)
0 to 5000 ppmv (maximum)

Concentration
Dew Point
Cell Pressure
Cell Temperature

-20 to 50°C (-4 to 122°F)

Inlet Pressure: 140 to 350 kPa (20 to 50 psig)
Sample Cell: 700 to 1400 mbara

316L stainless steel
FKM O-Rings
Glass

100 to 240 VAC, 50 to 60 Hz - standard 12-Volt
Sealed Lead-Acid Battery
Approx. 8 hours usage time per charge
0.5 Amps at 120 VAC during recharging

Analog Output: 1 or 2 4-20mA Isolated, 1200 ohms at 24 VDC max load (optional)
Serial: RS232C
Protocol: Modbus Gould RTU or Daniel RTU or ASCII

Anodized Aluminum

None

None
