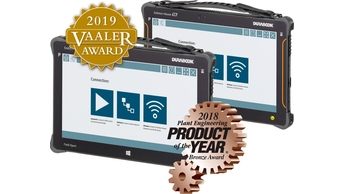

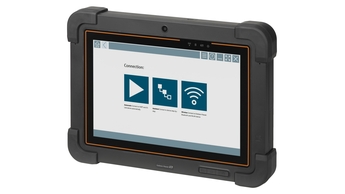

The Field Xpert SMT70 tablet PC for device configuration enables mobile plant asset management in hazardous and non-hazardous areas.
Read more
Universal, high-performance tablet PC for device configuration in Ex Zone 1 areas
Read more
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Function

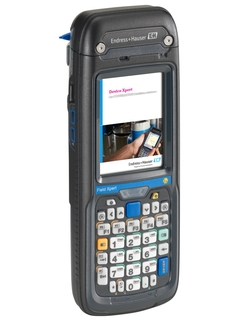

Ruggedized mobile computer (PDA) for commissioning and maintenance of field devices. Efficient device configuration and device diagnostics for HART and FOUNDATION fieldbus devices in Ex- and Non Ex-areas.
CPU
OMAP Multi Core Processor 1GHz
Memory
512 MB RAM, 1 GB Flash Memory, 16 GB Micro-SD Card (up to 32 GB possible)
Power supply
Lithium-ion battery, IEEE 1725 (removable, rechargeable), 3,7 V,4000 mAh
Dimensions (WxHxD)
Standard: 225 mm x 85 mm x 58 mm (8,8" x 3,3" x 2,3") With optional head module: 249 mm x 85 mm x 58 mm (9,8" x 3,3" x 2,3")
Screen size
High resolution 3.5 inches touchscreen display, Gorilla glass protected, ambient light sensor, LED backlight, automatic screen rotation (accelerometer).
Resolution
VGA (640 x 480 pixels), 65.536 colors
Communication interface
• USB • Wireless LAN • Bluetooth • Infrared
Operation
Operating system: Microsoft Windows Embedded Handheld 6.5.3, German or English (depending on the order)
Configuration

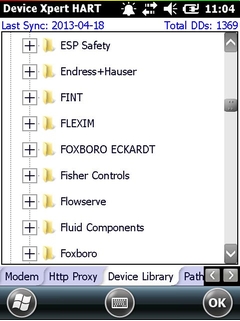

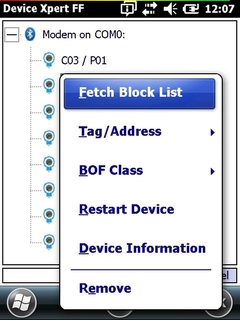

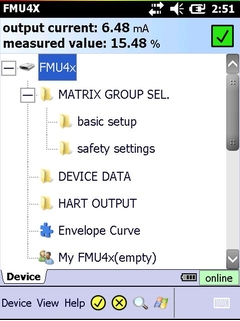

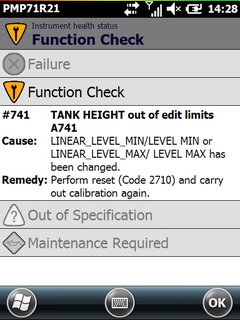

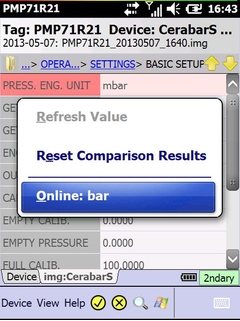

Configuration software: • Device Xpert HART • Device Xpert FOUNDATION fieldbus
Certificates
Drop specification: MIL-STD 810G Electromagnetic Compatibility: Interference conformance to • EN 55022: 2006 + A1: 2007 • CISPR 22: 2006-03 (Class B) Immunity conformance to • EN 55024: 1998 + A1: 2001 + A2: 2003 • CISPR 24: 1998 + A1: 2001 + A2: 2003 Ingress protection: IP65, NEMA Type 4 Explosion protection: Intrinsically safe II 2G Ex ia IIC T4 Gb IP64 II 2D Ex ia IIIC T135°C Db IP6X CE Mark Hazardous area approval: • ATEX (Zone 1) IIC T4 • ATEX (Zone 21) IIIC IP 64 • IECEx (Zone 1) IIC T4 • IECEx (Zone 21) IIIC IP 64 • NEC Class I, Division 1, A–D T4 • NEC Class II, Division 1, E–G T4 • NEC Class III, Division 1 Telecommunication approval: FCC, CE Electrical safety: UL (DEMKO), cULus listed
1 documents
Field Xpert - Device Xpert Package - Version 3.01.05 (SFX350, SFX370)
Manufacturer Information for users regarding software updates (following the NAMUR recommendation 53) Device Xpert HART 2.01.05 Device Xpert FF 1.05.00
