Proline Promass A 300
Caudalímetro por efecto Coriolis

Caudalímetro por efecto Coriolis - ProlinePromass A300 para aplicaciones de proceso ©Endress+Hauser

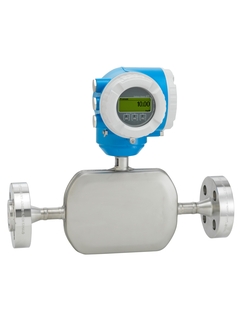

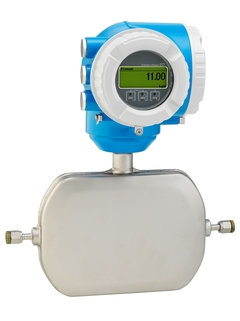

Proline Promass A 300 para aplicaciones de proceso

Proline Promass A –el campeón de peso ligero para caudales más bajos.

Caudalímetro por efecto Coriolis - ProlinePromass A300 para aplicaciones higiénicas ©Endress+Hauser

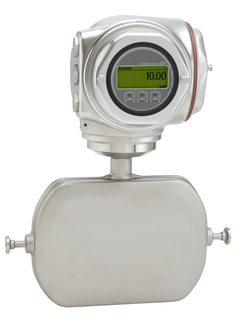

Proline Promass A 300 para aplicaciones higiénicas

Caudalímetro por efecto Coriolis - ProlinePromass A300 con kit de montaje para su montaje en tubería, barra o pared ©Endress+Hauser

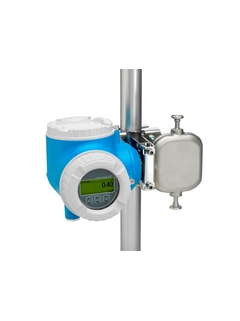

Proline Promass A 300 con kit de montaje para su montaje en tubería, barra o pared

El principio de medición de caudal por Coriolis

Caudalímetro preciso de un solo tubo para los caudales más bajos con un transmisor compacto y fácilmente accesible

Promass A es ideal para un control de procesos continuo en aplicaciones muy exigentes. Su exclusivo sistema de un solo tubo autodrenable permite realizar mediciones precisas de líquidos y gases en los caudales más bajos y en altas presiones. Con su transmisor compacto, Promass A 300 ofrece una gran flexibilidad en lo que se refiere a la operación y la integración del sistema: acceso desde un lateral, indicador remoto y opciones de conectividad mejoradas. La Heartbeat Technology garantiza el cumplimiento de las normas y la seguridad del proceso en todo momento.

  • Ventajas

    • Instalación que ocupa poco espacio – sensor compacto y ligero

    • Máxima calidad de producto – diseño del tubo de medición autodrenable en todos los tamaños de línea

    • Seguridad de proceso óptima – resistente a condiciones ambientales corrosivas y obstrucciones...

  • Ámbito de aplicación

    • El principio de medición funciona con independencia de las propiedades físicas del fluido tales como la viscosidad o la densidad

    • Apto para aplicaciones con las cantidades más pequeñas de caudal de todas las industrias.

    Propiedades del equipo

    • Diámetro...

Características y especificaciones

Atrás

Details

  • Measuring principle

    Coriolis

  • Encabezado del producto

    Single-tube flowmeter for accurate measurement of lowest flow rates with a compact, easily accessible transmitter. Suitable for applications with smallest flow quantities in all industries.

  • Características del sensor

    Space-saving installation – compact, lightweight sensor. Highest product quality – self-drainable measuring tube design in all line sizes. Optimum process safety – resistant to corrosive ambient conditions and internal clogging. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 430.9 bar (6250 psi).

  • Características del transmisor

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access.

  • Rango de diámetro nominal

    DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

  • Materiales húmedos

    Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

  • Variables medidas

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density

  • Máx. error medido

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

  • Rango de medición

    0 to 450 kg/h (0 to 16.54 lb/min)

  • Máx. presión de proceso

    430.9 bar (6250 psi)

  • Rango de temperatura del medio

    -50 to 205 °C (-58 to 401 °F)

  • Rango de temperatura ambiente

    -40 to 60 °C (-40 to +140 °F)

  • Material de carcaza del sensor

    Stainless steel, 1.4404 (316L)

  • Material de la cubierta del transmisor

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design

  • Grado de protección

    Compact version: IP66/67, type 4X enclosure.
    External WLAN antenna: IP67
    IP69

  • Pantalla/Operación

    4-line backlit display with touch control (operation from outside)

    Configuration via local display and operating tools possible

    Remote display available

  • Salidas

    3 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • Entradas

    Status input
    4-20 mA input

  • Comunicación digital

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • Suministro de energía

    DC 24 V

    AC 100 to 230 V

    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • Aprobaciones para áreas peligrosas

    ATEX, IECEx, cCSAus, INMETRO, NEPSI

  • Seguridad del producto

    CE, C-TICK

  • Seguridad Funcional

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • Aprobaciones y certificados metrológicos

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • Certificados y aprobaciones de presión

    CRN

  • Certificados del material

    3.1 material

  • Aprobaciones higiénicas y certificados

    3-A, cGMP

  • Measuring principle

    Coriolis

  • Encabezado del producto

    Single-tube flowmeter for accurate measurement of lowest flow rates with a compact, easily accessible transmitter. Suitable for applications with smallest flow quantities in all industries.

  • Características del sensor

    Space-saving installation – compact, lightweight sensor. Highest product quality – self-drainable measuring tube design in all line sizes. Optimum process safety – resistant to corrosive ambient conditions and internal clogging. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 430.9 bar (6250 psi).

  • Características del transmisor

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access.

  • Rango de diámetro nominal

    DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

  • Materiales húmedos

    Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

  • Variables medidas

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density

  • Máx. error medido

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

  • Rango de medición

    0 to 450 kg/h (0 to 16.54 lb/min)

  • Máx. presión de proceso

    430.9 bar (6250 psi)

  • Rango de temperatura del medio

    -50 to 205 °C (-58 to 401 °F)

  • Rango de temperatura ambiente

    -40 to 60 °C (-40 to +140 °F)

  • Material de carcaza del sensor

    Stainless steel, 1.4404 (316L)

  • Material de la cubierta del transmisor

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design

  • Grado de protección

    Compact version: IP66/67, type 4X enclosure.
    External WLAN antenna: IP67
    IP69

  • Pantalla/Operación

    4-line backlit display with touch control (operation from outside)

    Configuration via local display and operating tools possible

    Remote display available

  • Salidas

    3 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • Entradas

    Status input
    4-20 mA input

  • Comunicación digital

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • Suministro de energía

    DC 24 V

    AC 100 to 230 V

    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • Aprobaciones para áreas peligrosas

    ATEX, IECEx, cCSAus, INMETRO, NEPSI

  • Seguridad del producto

    CE, C-TICK

  • Seguridad Funcional

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • Aprobaciones y certificados metrológicos

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • Certificados y aprobaciones de presión

    PED, CRN

  • Certificados del material

    3.1 material

  • Aprobaciones higiénicas y certificados

    3-A, cGMP

  • Measuring principle

    Coriolis

  • Encabezado del producto

    Single-tube flowmeter for accurate measurement of lowest flow rates with a compact, easily accessible transmitter. Suitable for applications with smallest flow quantities in all industries.

  • Características del sensor

    Space-saving installation – compact, lightweight sensor. Highest product quality – self-drainable measuring tube design in all line sizes. Optimum process safety – resistant to corrosive ambient conditions and internal clogging. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 430.9 bar (6250 psi).

  • Características del transmisor

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access.

  • Rango de diámetro nominal

    DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

  • Materiales húmedos

    Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

  • Variables medidas

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density

  • Máx. error medido

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

  • Rango de medición

    0 to 450 kg/h (0 to 16.54 lb/min)

  • Máx. presión de proceso

    430.9 bar (6250 psi)

  • Rango de temperatura del medio

    -50 to 205 °C (-58 to 401 °F)

  • Rango de temperatura ambiente

    -40 to 60 °C (-40 to +140 °F)

  • Material de carcaza del sensor

    Stainless steel, 1.4404 (316L)

  • Material de la cubierta del transmisor

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design

  • Grado de protección

    Compact version: IP66/67, type 4X enclosure.
    External WLAN antenna: IP67
    IP69

  • Pantalla/Operación

    4-line backlit display with touch control (operation from outside)

    Configuration via local display and operating tools possible

    Remote display available

  • Salidas

    3 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • Entradas

    Status input
    4-20 mA input

  • Comunicación digital

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • Suministro de energía

    DC 24 V

    AC 100 to 230 V

    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • Aprobaciones para áreas peligrosas

    ATEX, IECEx, cCSAus, INMETRO, NEPSI

  • Seguridad del producto

    CE, C-TICK

  • Seguridad Funcional

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • Aprobaciones y certificados metrológicos

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • Certificados y aprobaciones de presión

    CRN

  • Certificados del material

    3.1 material

  • Aprobaciones higiénicas y certificados

    3-A, cGMP
