Medición de depósitos
Transmisor digital TMD1
Para la calibración remota de un depósito

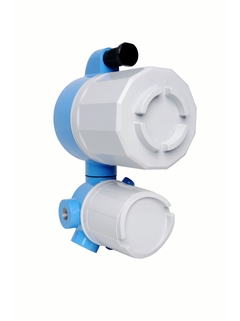

TMD1 se utiliza conjuntamente con el indicador de nivel de campo LT5 para la calibración remota de un depósito. TMD1 utiliza diversos protocolos de comunicación, como V1, BCD, Sakura a fin de transmitir el nivel, la temperatura y las alarmas.
-
Ventajas
Mediante una consola, es posible realizar la calibración y el ajuste de la salida de transmisión, una vez instalado el transmisor.
Están disponibles módulos para la salida de transmisión remota, la conversión A/D de la temperatura, la alarma de nivel, la...
-
Ámbito de aplicación
Temperatura ambiente, a prueba de intemperie: -20 a +60 °C (-4 a +140 °F), antideflagrante: -20 a +40 °C (-4 a +140 °F)
Documentos / Manuales / Software
-
Techinical Information Digital Transmitter TMD1000 TMD1
TMD1 is used in a combination with float level gauge (LT series). TMD1 can monitor the tank data of level and temperature by the remote operation. The input/output cards can be selected according to their purposes for the information between the transmitter and the receiver. Furthermore employing module cards can easily change or add functions.
Technical Information (TI) -
Technical documentation TMD1
Tank gauging
Technical Information (TI) -
Operating Instruction TMD1 HHT2 Hand Held Terminal Operation and Setting
HTT2 (Hand Held Terminal) is used for a terminal of TMD1 operation and each function setting. HHT2 also can support the servo level gauge TGM5000.
Manual de instrucciones (BA) -
TMD1 series - operating Instructions module
Tank gauging
Manual de instrucciones (BA) -
Operating Instruction
TMD1000 TMD1
Digital Transmitter
Digital transmitter TMD1 transfers the signal relate to liquid level and liquid temperature in a tank, or the status of power outage and malfunction via an external device and also transfers all tank data to a receiver including that of the peripheral equipment by digital transmission system. TMD1 is used in combination with float level gauge LT5.
Manual de instrucciones (BA) -
Operating Instruction
TMD1000 TMD1
Digital Transmitter Module Setting and Adjustment
TMD1 is available in a variety option module. By installing modules as necessary, various customer specification requests may be built and filled economically.
Manual de instrucciones (BA) -
防爆注意事項説明書
デジタル発信器 TMD1
TC20243 ( 液面計発信器)
TC20249 ( 液面計発信器)
本説明書は、検定合格番号 第TC20243 号 および第TC20249 号のデジ タル発信器TMD1 の防爆に関する注意事項を記載しています。
Ex Safety Instructions (XA) -
Tank Gauging
Система коммерческого и оперативного учета продуктов в резервуарных парках.
Competence Brochure (CP)07/15Ruso -
TMD1- Picture
Tank gauging
Picture10/07Japonés -
Sakura, System&Gauging
Código de producto: TMD1- Región: Japan Entidad certificadora: TIIS Protección: Ex d IIB T4
Explosion ProtectionJaponés -
Sakura, System&Gauging
Código de producto: TMD1- Región: Japan Entidad certificadora: TIIS Protección: Ex d IIB T4
Explosion ProtectionJaponés -
Sakura, System&Gauging
Código de producto: TMD1- Región: Japan Entidad certificadora: TIIS Protección: Ex d IIB T4
Explosion ProtectionJaponés -
Sakura, System&Gauging
Código de producto: TMD1- Región: Japan Entidad certificadora: TIIS Protección: Ex d IIB T4
Explosion ProtectionJaponés -
Sakura, System&Gauging
Código de producto: TMD1- Región: Japan Entidad certificadora: TIIS Protección: Ex d IIB T4
Explosion ProtectionJaponés -
Sakura, System&Gauging
Código de producto: TMD1- Región: Japan Entidad certificadora: TIIS
Explosion ProtectionJaponés
Accesorios / Piezas de repuesto
-
-
Nr 11 Order code 017853-5019
O-ring, El-compartment, CR
Size: D165mm, d4mm. Material: CR (Chloroprene Rubber). Part: main body cover, TMD1,TGM5, DU, DUR. Usage: TMD1, TGM5, DU, DUR.
-
Nr 11 Order code 017880-5025
O-ring, Large terminal box, AT5 body,CR
Size: D120mm, d3.5mm. Material: CR. Part: terminal box, large. Usage: AT1/500, B3-11, DRM9700, DU/R, MPC2, TGM5, TMD1.
-
-
-
Nr 31 Order code 71125579
Level A/D conv., set+MIF-4, sv 2.01
Analog / digital converter, MIF-4 software version 2.01. Usage: TMD1.
-
-
-
Nr 33 Order code 71079187
TMD1 power supply unit 100VAC, ver.1
Digital Transmitter TMD1. Usage: TMD1.
-
Nr 33 Order code 71079189
-
Nr 33 Order code 71079190
-
Nr 33 Order code 71079191
-
-
-
Nr 34 Order code 71125580
-
Nr 34 Order code 56004891
-
Nr 34 Order code 56004892
-
Nr 34 Order code 017870-0837
-
Nr 34 Order code 017853-1709
-
Nr 34 Order code 017853-1710
-
Nr 34 Order code 017853-6307
-
Nr 34 Order code 017853-6308
DAC-1, 4-20mA output
-
Nr 34 Order code 70105997
I/F DRMM-A, TGM5000/TMD1
DRM9700 communication control. Usage: TGM5, TMD1.
-
-
-
Nr 35 Order code 56004443
-
-
-
Nr 57 Order code 017871-1231
O-ring, LT/transmitter coupling
Size: D60mm, d3.5m. Material: CR (Chloroprene Rubber). Part: LT-coupling. Usage: AT1/AT500, DU, DUR, TMD1.
-
Nr 57 Order code 70100540
-
